PiStorm600 for Amiga 600

PiStorm600 for Amiga 600 *new*

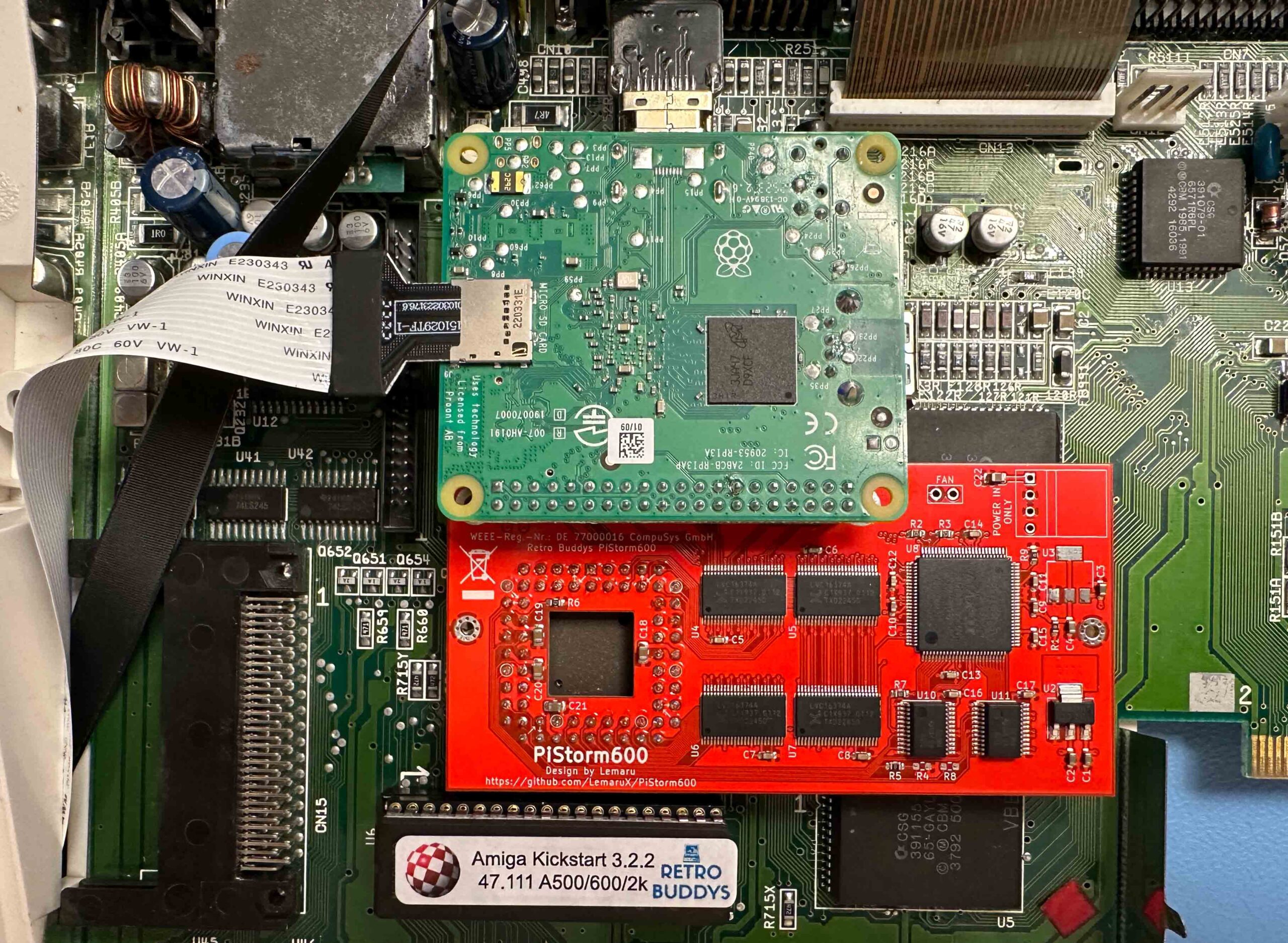

The PiStorm600 for the Amiga 600 uses a Raspberry Pi as processor accelerator/”turbo card”, RTG graphics card and as hard disk interface and was developed especially for the Amiga 600.
A Raspberry Pi 3a+ or Raspberry Zero2WH is absolutely necessary for operation, but is not included in the standard package. However, this can be ordered optionally from us. We only use the very strong AMP sockets so that the PiStorm600 does not have to be additionally attached to the mainboard.

Features

• For Amiga 600
• 68020 (~23MIPS) with standard configuration and up to 68040 with ~2000 MIPS
• Multiple processor configuration options (68020/68030/68040)
• up to 128 MB memory
• RTG graphics card output with high resolution modes via HDMI.
• WLAN card to connect the Amiga to the Internet or a LAN (Musashi – does not yet work with EMU68)

Requirements

• Amiga 600
• Kickstart 2.05, 3.0, 3.1, 3.1.4, 3.2, 3.2.1 or 3.2.2.
• SD card from 8GB
• PiStorm Github(https://github.com/captain-amygdala/pistorm)
• AmigaOS 3.1 or higher
• WinUAE for configuration on the PC

Optional

• Amiga OS 3.2.2.1 preconfigured on SD card
• CaffeineOS preconfigured on SD card
• SD + HDMI FPV extension cable

Scope of delivery

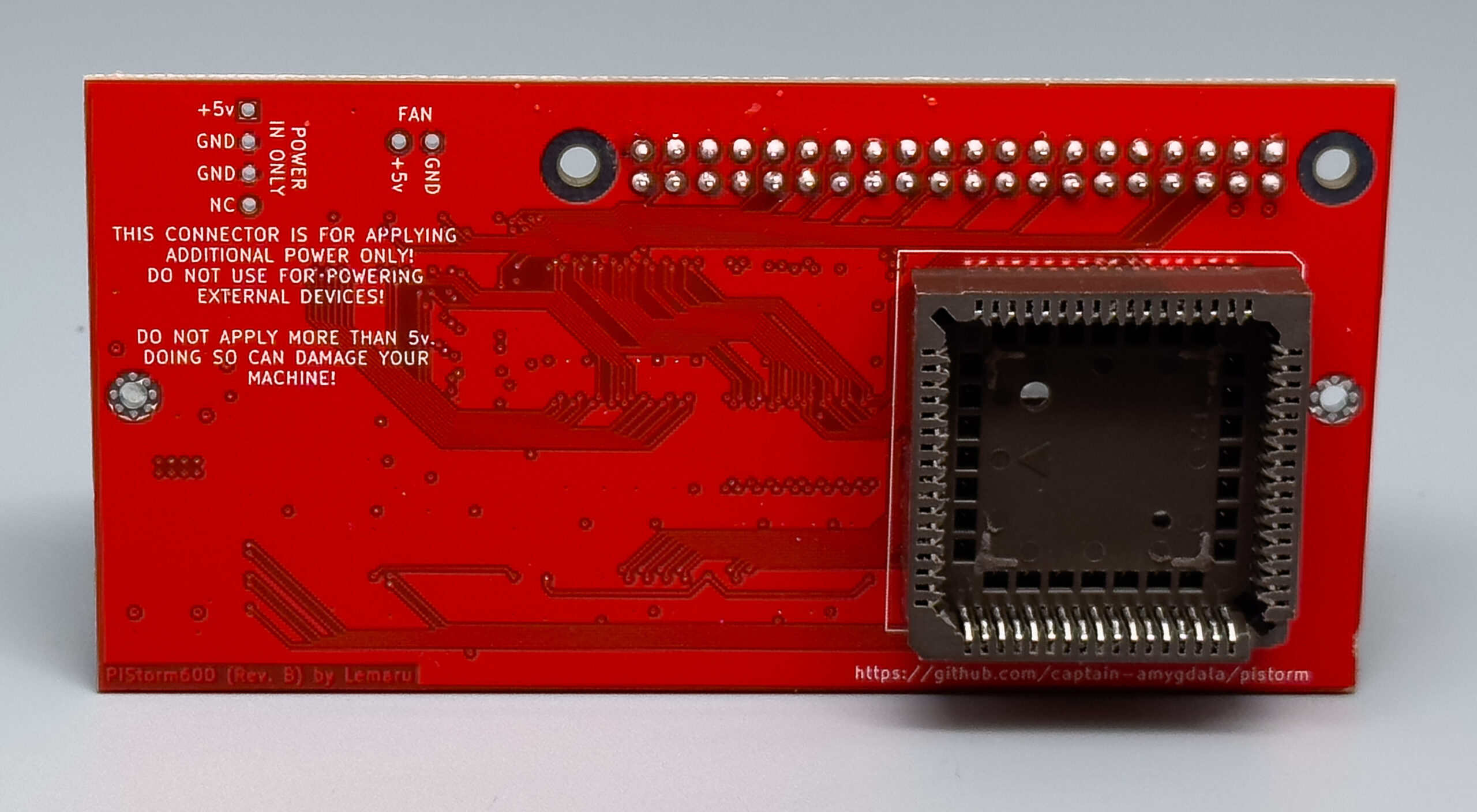

• PiStorm600 Adapter for Amiga 600
• 2 x M2.5 8mm screws
• 2 x spacers

Documentation

• Documentation on the project can be found here: https://github.com/captain-amygdala/pistorm
• Emu68 Software by Michal Schulz can be found here https://github.com/michalsc/Emu68
• PiStorm600 from Leigh Russ https://github.com/LemaruX/PiStorm600

The PiStorm was developed by the team around Claude Schwarz, Michal Schulz and others. The PiStorm 600 was developed by Leigh Russ / LemaruX on the basis of the PiStorm 500.
We are happy to provide support for this outstanding project.

We manufacture the PiStorm adapters in House.
